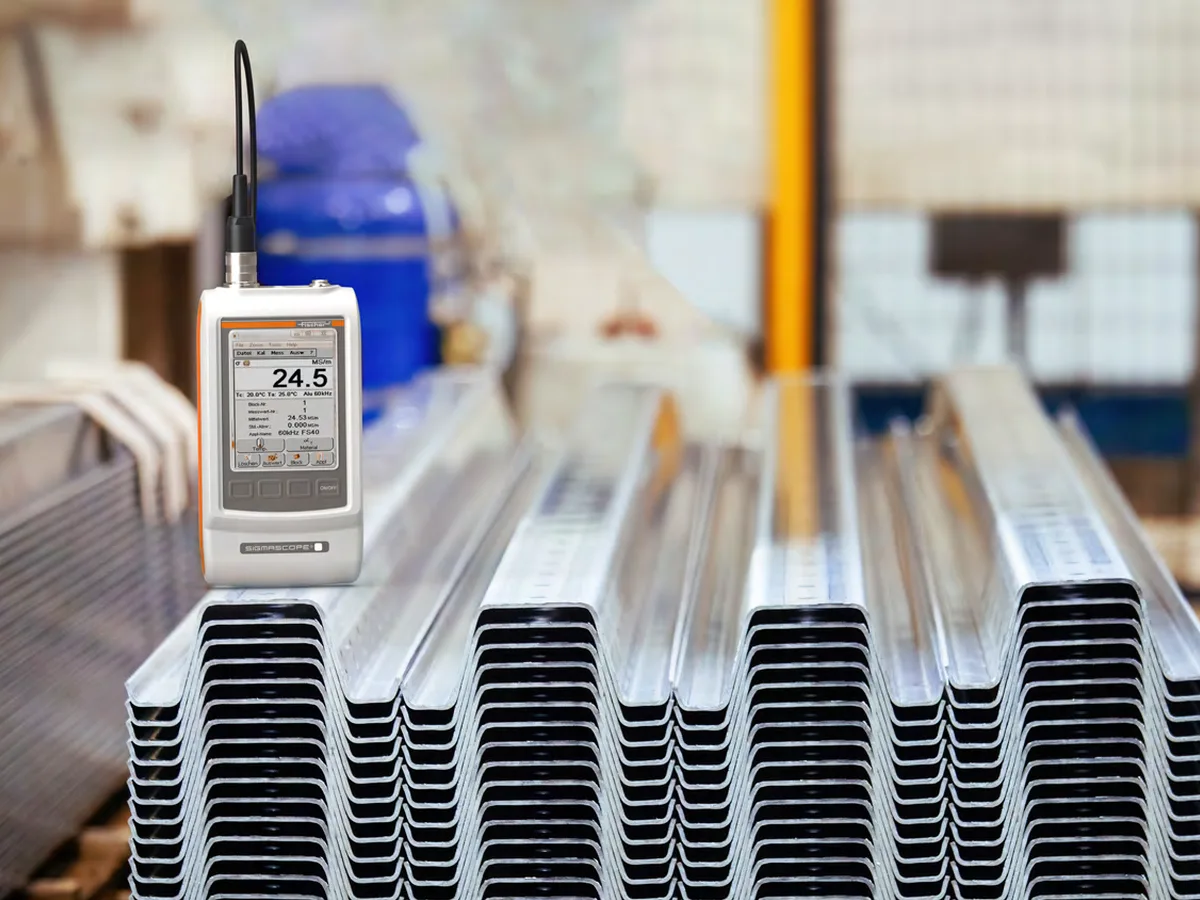

FISCHER SIGMASCOPE SMP350

FISCHER SIGMASCOPE SMP350

The SIGMASCOPE SMP350 quickly and accurately determines the electrical conductivity of all non-magnetizable metals such as aluminum, copper and austenitic steels. Conductivity allows conclusions about composition, microstructure or mechanical properties, so it is used in raw material inspection, anodized layers and alloy sorting. The measurement is based on the phase-sensitive eddy current method and takes the temperature coefficient of each material into account.

Technical data

Test method

phase-sensitive eddy current

Electrical conductivity

0,3–63 MS/m ali 0,5–108 % IACS

Interfaces

USB

Probes

Probes with or without integrated temperature sensor; optional external temperature sensor
